Air Cooled Handheld Portable Metal Laser Welding Machine With GW Laser Source

Brand Name : Riselaser

Model Number : RL-F1500 Air Cooling

Certification : ISO, CE

Place of Origin : Shenzhen, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 SET/WEEK

Delivery Time : 5-9 working days

Packaging Details : PLYWOOD BOX

Key words : metal laser welding machine

Key words 2 : portable metal laser welding machine

Machine : Air-cooled handheld portable metal laser welding machine

Features : Small size, light weight

Laser Power : 1500w

Laser source : GW CW 2000W

Machine weight : 60KG

Cooling system : air cooling system

Fib1500Wer wire length : 10M-15M

Contact Now

Air-cooled handheld portable metal laser welding machine with GW laser source

Air Cooled Handheld Portable Metal Laser Welding Machine With GW Laser Source

The air-cooled handheld laser welding system is easy to learn, quick and easy to set up
Consistent, high-quality welds in a variety of materials and thicknesses
Welding speed is 4 times faster than TIG welding

Air Cooled Handheld Portable Metal Laser Welding Machine With GW Laser Source
Easy to learn and operate for uniform welding results

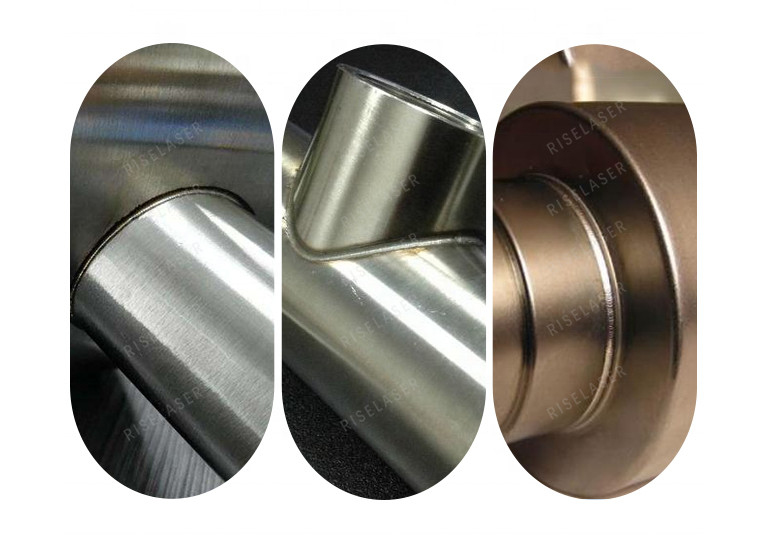

High quality welding of thick, thin and highly reflective metals without distortion, undercuts or burn through
Welding dissimilar metal parts of different thicknesses
Small heat input and heat affected zone

Air Cooled Handheld Portable Metal Laser Welding Machine With GW Laser Source
Less preparation work before welding and simple post-welding treatment
Increase productivity by eliminating the need to trim deformed parts after welding
Unique air-cooled design eliminates the complex links and power consumption required by water-cooled laser welding systems
The overall structure is compact, equivalent to the volume and weight of a desktop computer
Built-in parameters and storage modes can simplify operation steps and improve welding efficiency

Machine specification

Electrical and Environmental Requirements 　
Input voltage 220VAC/50Hz/60Hz, ＜18A
Protective gas Argon, Nitrogen, Ar+CO2 mix
Storage ambient temperature -20-60℃
Working ambient temperature range 0~50℃
Working environment humidity range ≤95%
　
Mechanical Specifications 　
size 650x300x570 [mm] (L*W*H)
weight 62kg
　
Process application 　
Portable Laser Welding Handheld Laser Welding 　
Intelligent Laser WeldingPrecision Laser Welding 　

Material range
Material Type Thickness Thickness of single-sided welding Thickness of Double-sided welding
Stainless steel ≤4mm ≤10mm
carbon steel ≤4mm ≤10mm
aluminum ≤4mm ≤10mm
copper ≤1mm ≤2mm
