Operating system supported languages: Chinese, Turkish, Arabic, English, Korean

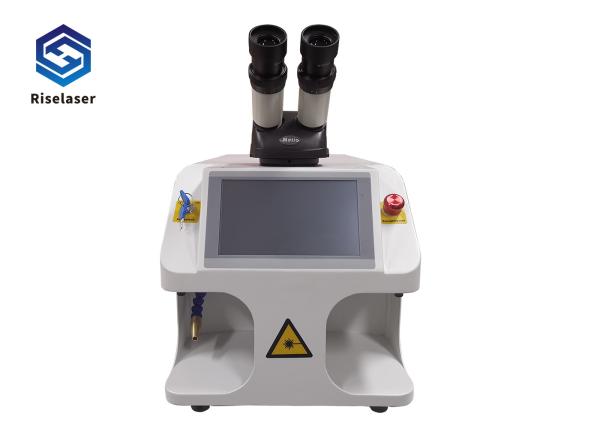

1. Observation system: The observation system of this jewelry spot welding machine consists of a microscope and a built-in high-definition CCD camera. Users can choose one or both of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.
2. Adjustment of the CCD cross cursor: If the light spot is not in the center of the cross cursor in a very clear position of the CCD camera system, you can change the position of the cross cursor by clicking the middle position of the four cross cursors. the sides of the screen so that the solder joint is in the center of the cursor
3. For welding operations, first ensure that the machine has been turned on normally, put the workpiece into the sight of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor to the desired welding position, gently step on the foot switch, the machine has laser output for welding.
4. Parameter adjustment, focusing, after the first welding, the welding effect of the solder joint does not meet the requirements, and the parameters need to be adjusted again. Focusing (-3.0-+3.0) makes the welding effect meet the requirements, and will not repeat the welding in the future. Needs to be readjusted.
Machine dimension
Specification
| Model | RL-Y60 |
| Maximum Output Power | 60W/80W/100W |
| Laser Wavelength | 1064nm |
| Maximum Pulse Energy | 40J |
| Puls Frequency | 1-15Hz |
| Puls Width | 0.1-10ms |
| Focal Diameter | 0.1-0.3mm |
| Rated Power | ≤2KW |
| Power supply | AC220V/50Hz |
| Cooling System | Inner Water Cooling |

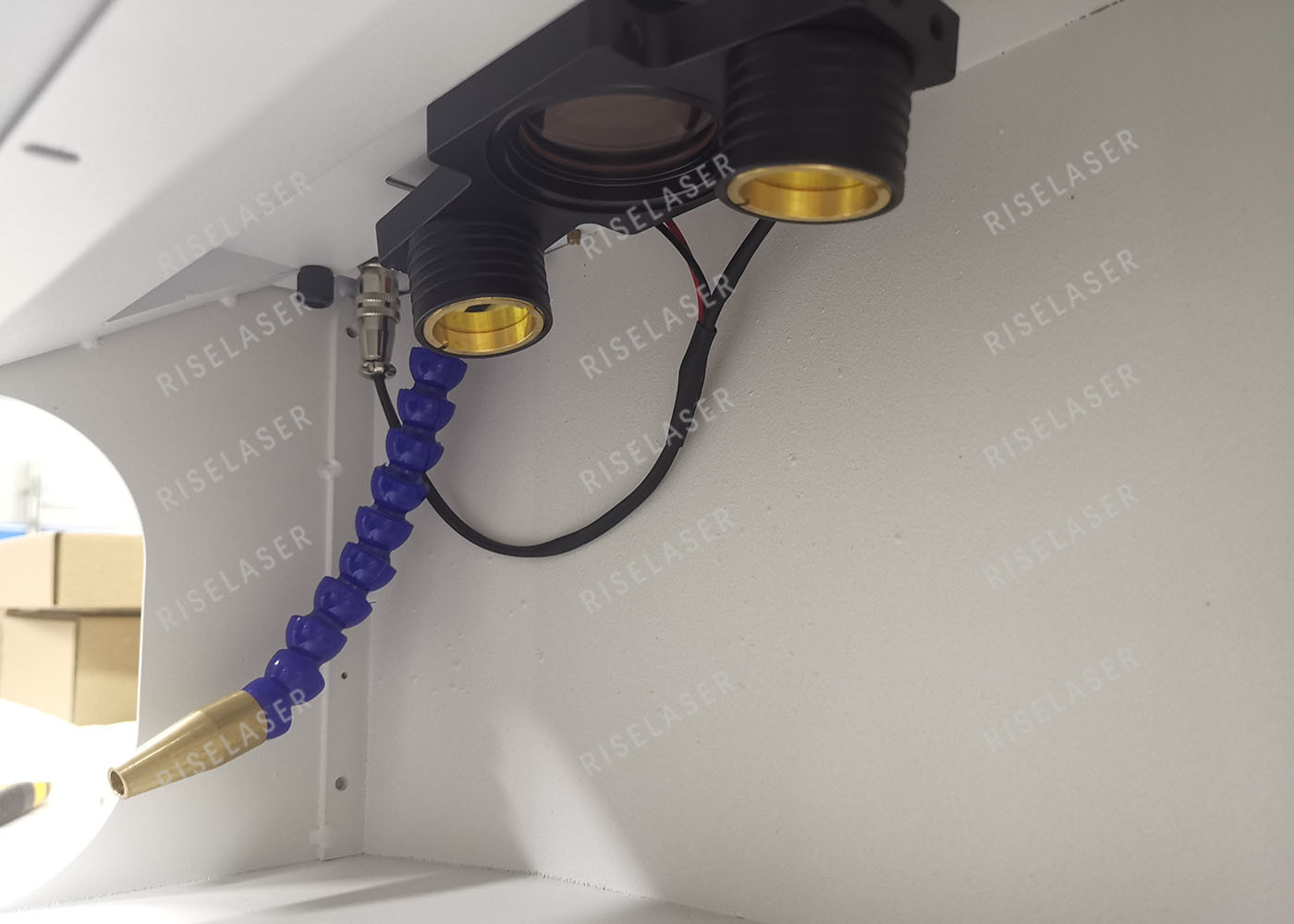

Machine Details
Application
Micro laser welding machines are mainly used in the jewelry, eyeglass frame, dental, night guard relining and repair, watch and golf club industries. It can process all metals used to make jewelry such as gold, silver, platinum, titanium, steel, palladium and their alloys. Mainly used in the manufacture and repair of jewelry, glasses, dentistry, watches and golf clubs, as well as precision welding of various micro and heat-sensitive components, such as nickel straps for batteries, hairsprings, leads for ICs.
Advantage
1. High precision Nd:YAG welding system. Wide range of parameter adjustment
2. Absolutely guarantee the stability of laser beam alignment
3. Easy maintenance: automatic water supply, no need to open the box
4. Color touch screen display
5. 50 parameter storage bits
6. Gas protection supplier
7. Cooling air conditioner
8. Standard deionization filter
9. Soft and attractive design
